MORE INFO

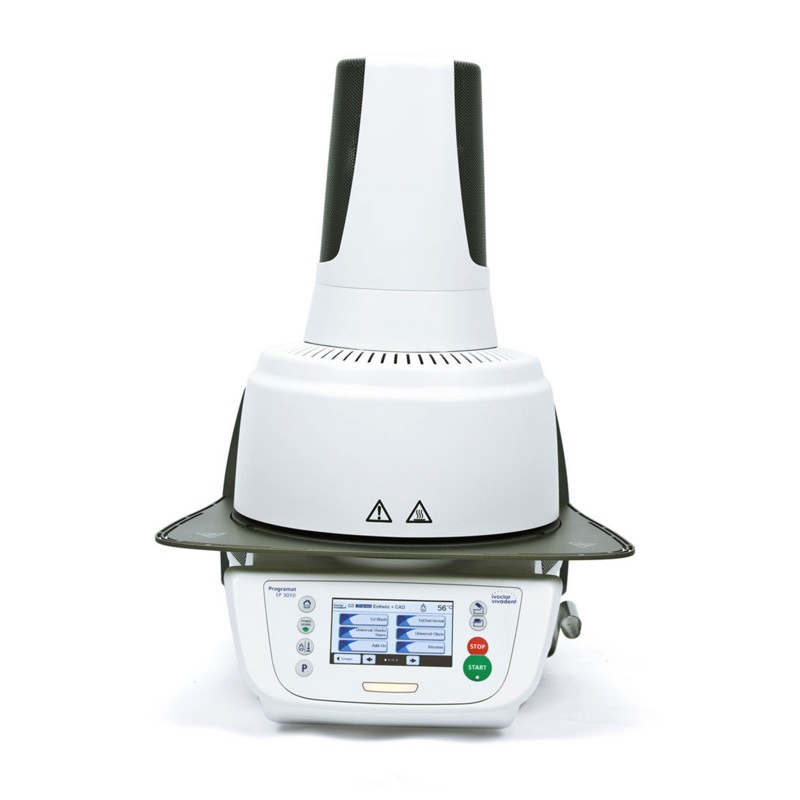

Programs are optimally coordinated with Ivoclar Vivadent materials.
QTK2 muffle technology with SiC bottom reflector for homogeneous heat distribution.
Colour touch screen and proven membrane-sealed keypad for easy operation.
Electronic press drive with force sensor produces high-quality press results. No compressed air connection required.
Crack Detection System detects cracks in the investment ring.
Easy and automatic temperature calibration at two reference points (ATK2).
Simple software update via USB flash drive.
Broad range of programs: 300 individual firing and 20 individual press programs.
Power Saving Technology for power-saving operation.
Technical data:
Power supply: 200 – 240 V, 50 – 60 Hz
Admissible voltage fluctuations ±10 %
Max. power consumption: 8A at 200 – 240 V
Vacuum pump Max. Allowed power consumption: 250 W. Only tested pumps should be used.
Dimensions of closed furnace: Depth: 465 mm – Width: 320 mm / 390 mm (with cooling tray) – Height: 550 mm
Dimensions of firing chamber: Diameter: 90 mm – Height: 80 mm
Max. firing temperature 1200 °C
Weight 18.3 Kg.
Includes:
Programat EP 3010.
Power cord.
Vacuum hose.
Programat firing tray kit 2.
Automatic Temperature Checking Set ATK2 (test set).
USB download cable.
Cooling grid.
Various accesories.
